La Cabra Frameset

From: Original price was: $1,195.00.Current price is: $995.00.

It’s easy to custom configure your new frameset.

  • Frame price starts at $1195 – frames are on sale for a limited time!
  • Choose your frame size and color
  • Choose to add a headset, or not
  • Hit “Add To Cart,” check out and I’ll handle the rest
  • Add a set of wheels or tires at checkout
  • Color/Size Availability
    • Peanut Butter PMS 7511: 18″, 20″ or 22″
    • Yellow Gray RAL 7034: 16″, 17″, 18″

Categories: , Tag:

Description

La Cabra is the bike that ticks a lot of boxes for folks, but doesn’t easily fit info any industry category.  Is it a mountain bike?  Is it a bikepacking bike?  Is it a monstercross plus bike?  Is it a bike with multiple personalities?  The answer to those questions and more is yes.  Yes, this is the bike that can pretty much be whatever you want it to be.  How will you build your La Cabra and where will you ride it?  It’s the bike you didn’t know you need.

  • Designed to fit up to 29″ x 2.4″ or 27.5″ x 2.8″ tires
  • Full chromoly double-butted frame
  • Segmented fork design with triple cage bosses
  • IS disc brake mounting front/rear
  • Internal dropper post compatible
  • Includes thru-axles
  • Please make sure to check the Sizing page to confirm sizing.
  • More La Cabra tech info available at this page.

Tech Info

Info you will need to build your La Cabra frame

Headtube 34mm I.D.
Headset EC34 w/ 30.0 crown race
Fork Straight 1 1/8″ steerer, 350mm long
Bottom Bracket BSA threaded, 73mm width
Crankset Compatibility Non-boost 1x is ideal up to 34t. Anything wider, like Boost, is compatible. 2x mountain in boost and non-boost is compatible up to 38t large.
Front Derailleur 34.9mm, Shimano side-swing is optimal for 2x. If running a 2x with 29″ tire, it’s especially important to use a side-swing derailleur or one with minimal linkage width. Use a low-clamp mount.
Wheel/Tire Size Max tire size 27.5″ x 2.8″ or 29″ x 2.3″
Seatpost 30.9mm
Seat Clamp 34.9mm (included)
Dropper Compatibility Internally routed housing, optimized for 100mm – 120mm travel based on correct frame size
Brake Compatibility IS mounts front and rear. Use post mount calipers with IS to Post mount adapters. +20 adapters front and rear to use 180mm front / 160mm rear rotor. If you have Flat mount calipers, this adapter is what you will need.
Rotor Front min/max = 160/180. Rear min/max = 140/180
Hub Spacing Boost 110mm x 15mm front, 148mm x 12mm rear
Front Thru Axle 15mm x 1.5mm thread pitch, overall length 130mm, included w/ frame. Compatible after-market axle is Robert Axle Project LIG 527 – request 5mm spacer when ordering. Ritchey also has a compatible axle.
Rear Thru Axle 12mm x 1.5mm thread pitch, overall length 175mm, included w/ frame. Compatible after-market axle is Robert Axle Project LIG 604.
Rack and Fender Fitment Multiple on fork and frame, fender mounts
Water bottle mounts Three on 15″, 16″, 18″; four on 20″ and 22″. Triple “anything” cage mounts on both fork legs and on bottom side of down tube.
Fenders Yes. Maximum fender/tire width for 29″ wheels – approximately 60mm/2.0″. Maximum fender/tire width for 27.5″ wheels – approximately 60mm/2.2″
Frame Saver? All frames are coated inside and out with a corrosion resistant black electrophoretic deposition (BED) coating. A frame saver spray isn’t necessary, but if you are going to ride in a wet area, a shot of Frame Saver™ or Boeshield® couldn’t hurt, especially in the lower part of the frame were moisture could collect.
Frame/Fork Weight 18″ frame with all the bolts, seat clamp, and thru-axle – 5lbs. 11oz. Fork with all the bolts and thru-axle – 3lbs. 7oz. Add or subtract a few ounces for each smaller or larger size.

Geometry | Sizing

La Cabra 16″ 17″ 18″ 20″ 22″
Seat Tube (center-top) 405 432 460 508 560
Head Angle 70° 70° 70.5° 70.5° 70.5°
Seat Angle 74° 73° 73° 72.5° 72.5°
Top Tube (effective) 545 560 580 600 620
Chain Stay 444 444 444 444 444
BB Drop 70 70 70 70 70
Head Tube Length 125 150 175 205 230
Fork Length 425 425 425 425 425
Fork Offset 55 55 50 50 50
Trail 72 72 74 74 74
Stack 581 604 632 660 684
Reach 376 378 385 390 403
Standover* 748 773 799 836 872
Front Center 624 635 641 656 677
Wheelbase 1059 1070 1075 1091 1112

*Based on 27.5″ x 2.6″ tire
BB height with 27.5″ x 2.6″ tire = 11.4″
BB height with 29″ x 2.3″ tire = 12″

Size / Fit Recommendations. For more sizing info check out the Sizing page.

Frame Size Minimum Seat Height Maximum Seat Height Rider Height Range
16” 62cm 69cm 5’0” – 5’5”
17” 64cm 71cm 5’4” – 5’8”
18” 68cm 77cm 5’7” – 5’11”
20” 75cm 82cm 5’10” – 6’2”
22” 78cm 87cm 6’1” +

Seat height is measured center of bb to top of seat, in-line with seat tube

Wheels

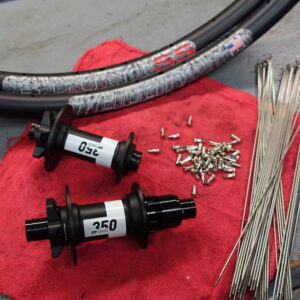

Add a set of handbuilt wheels for your new La Cabra frameset
La Cabra 29″ Wheelset
La Cabra 27.5″ Wheelset

Shipping

  • Frame shipping cost to continental US
    • California – $45
    • Pacific time zone – $60
    • Mountain time zone – $68
    • Central time zone – $79
    • Eastern time zone – $89
  • For shipping outside the US, please check the International shipping page for info on rates and where shipping is available.
