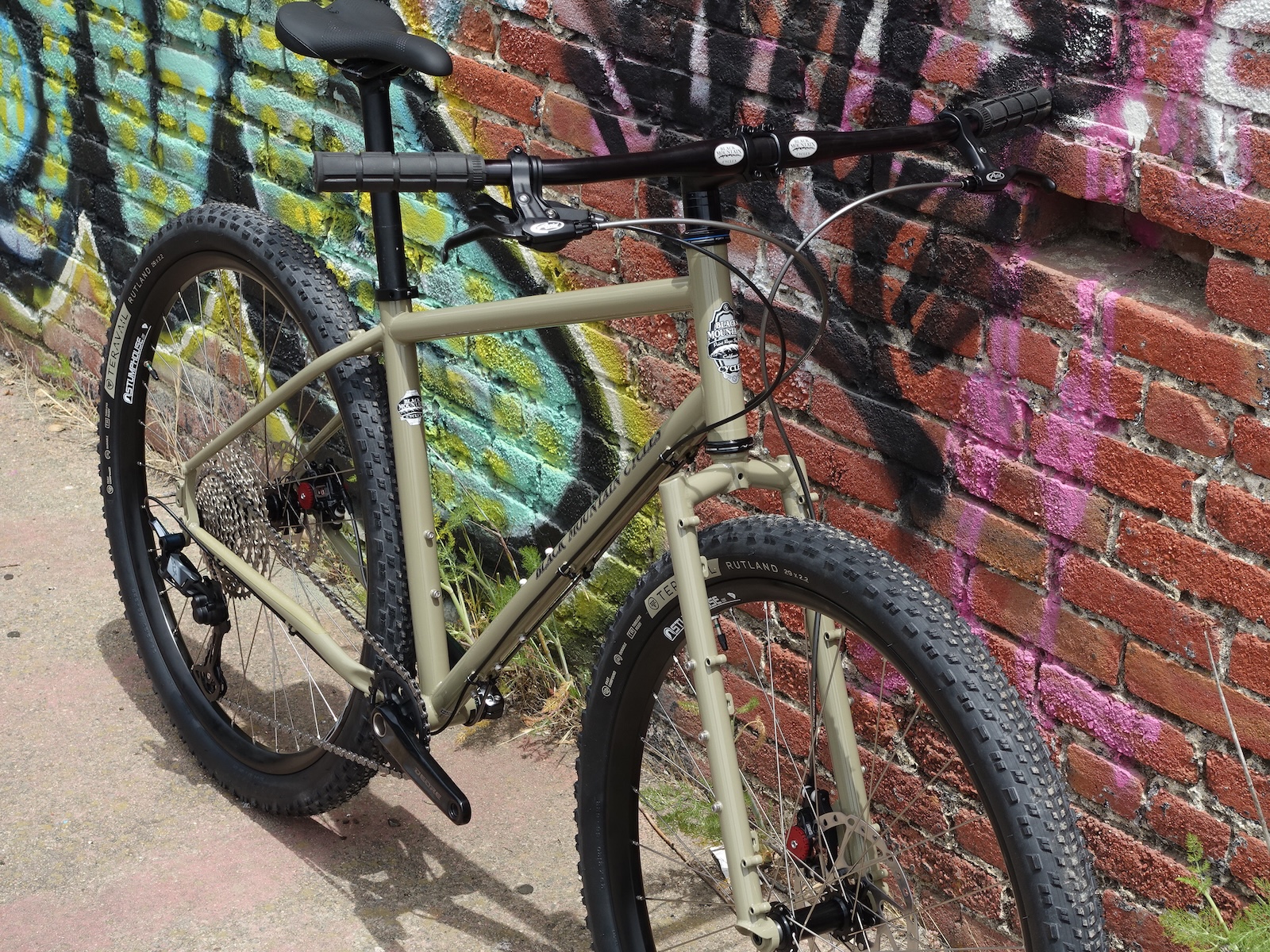

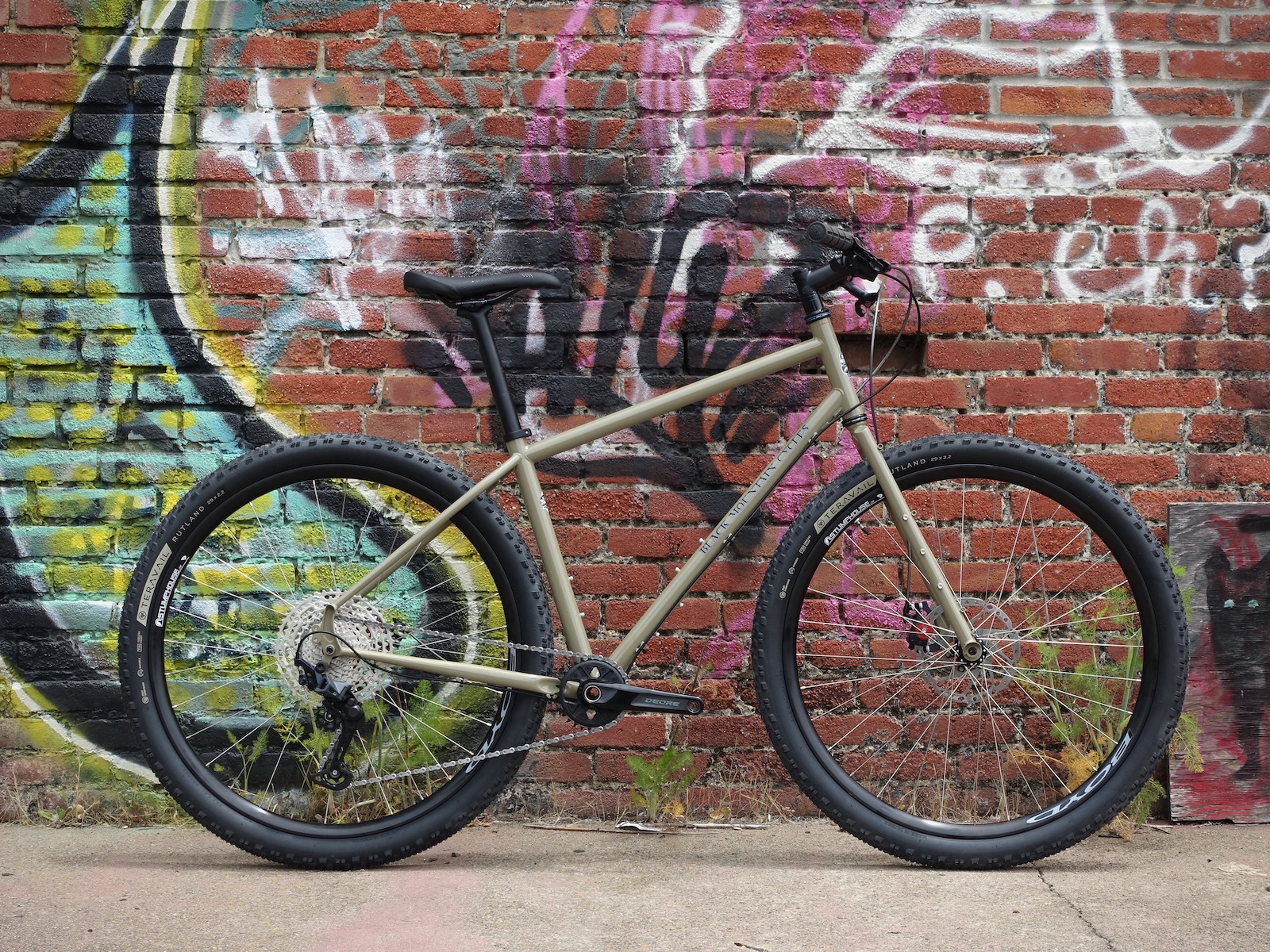

La Cabra Complete Shimano Flat Bar

$2,995.00

  • Complete La Cabra flat bar build
  • Complete specs noted below
  • Price for complete bike is $2995 + applicable sales tax and shipping
  • Lead time to ship approximately 1-2 weeks
  • Due to parts availability, substitutions are possible if available. Contact me to discuss.
  • Available color/sizes are: Peanut Butter – 18″, 20″, 22″. Yellow Gray – 16″, 18″

Category: Tag:

Description



Item

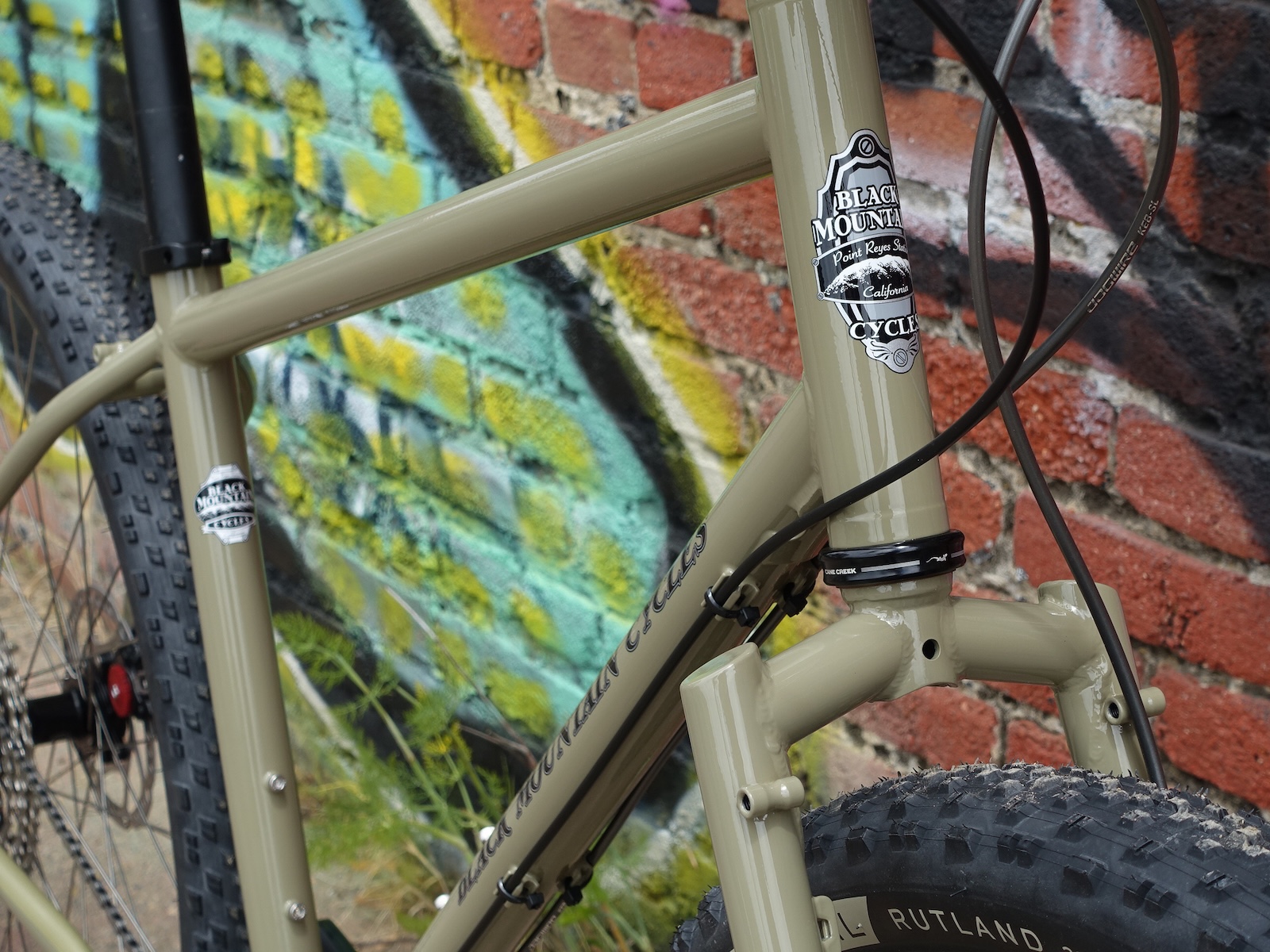

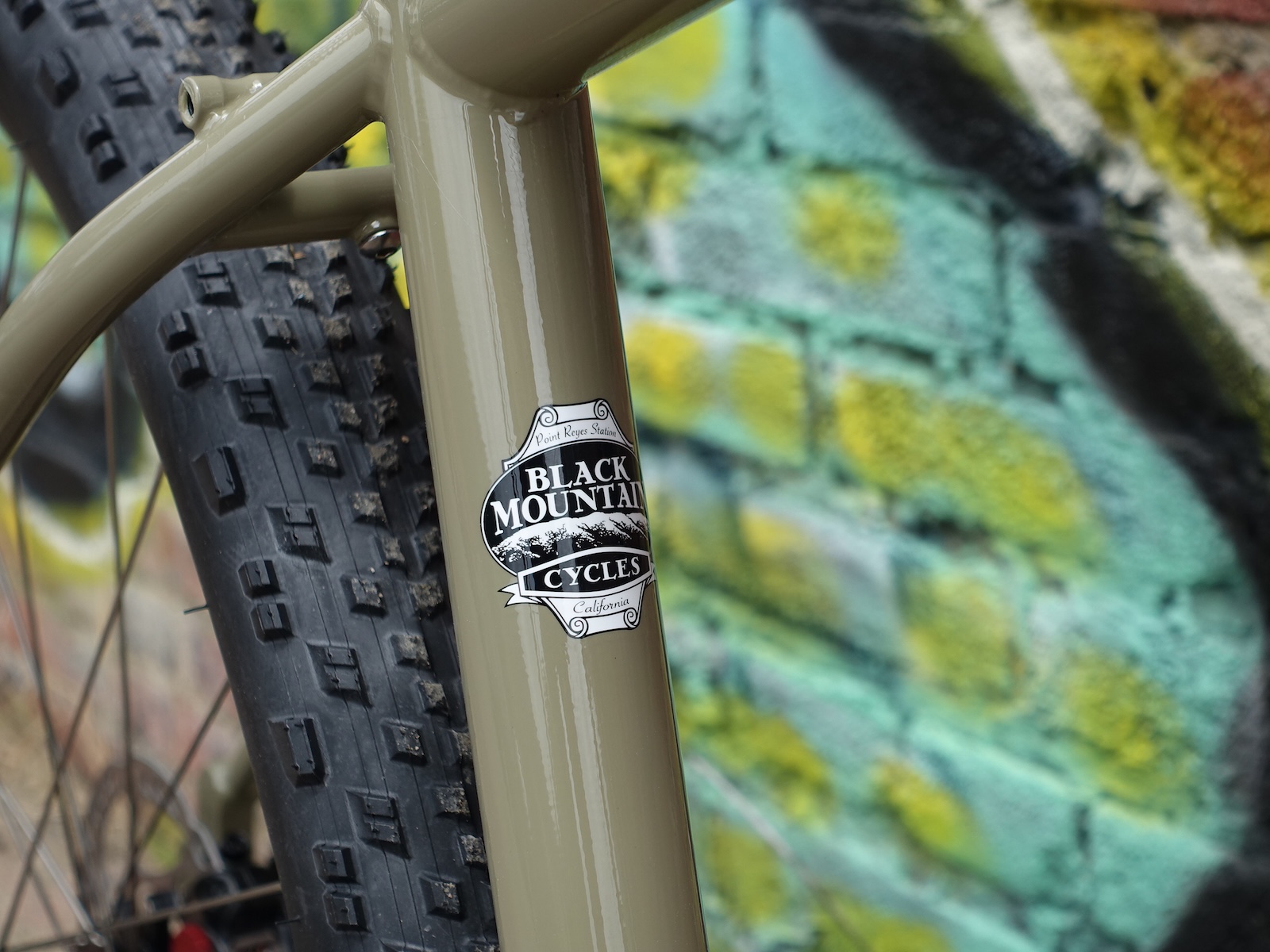

Frame Black Mountain Cycles La Cabra
Headset Cane Creek 40 Black
Spacers As Needed

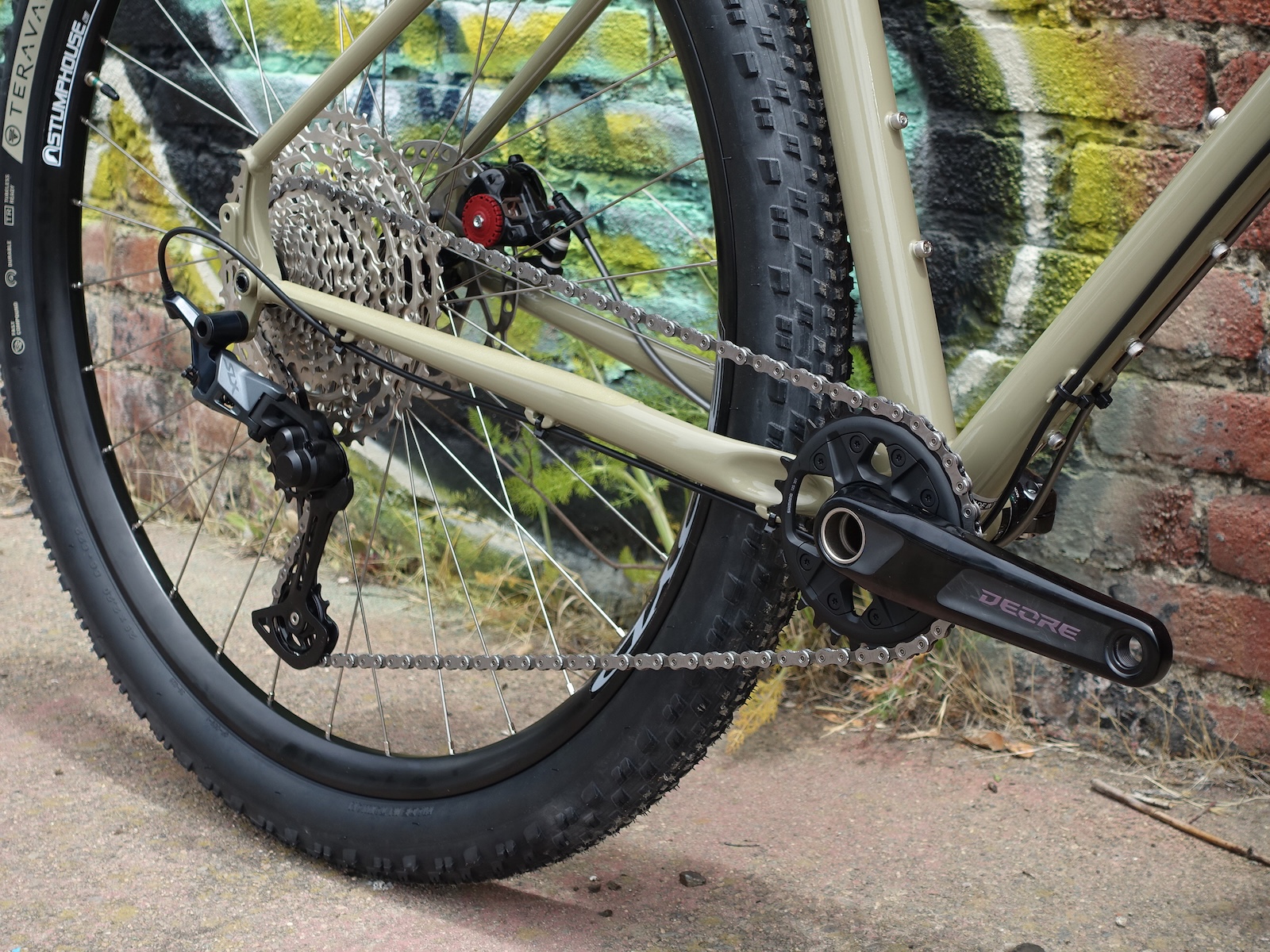

Crankset Shimano Deore M6100 30t; 16″ & 18″ 170mm, 20″ & 22″ 175mm
Bottom Bracket Shimano MT501
Shifters Shimano SLX M7100 12s
Handlebar Black Mountain Cycles Bar None
Stem MSW 31.8 Black
Grips / Tape Oury
Front Derailleur N/A
Rear Derailleur Shimano SLX M7100
Brake Levers Avid FR5

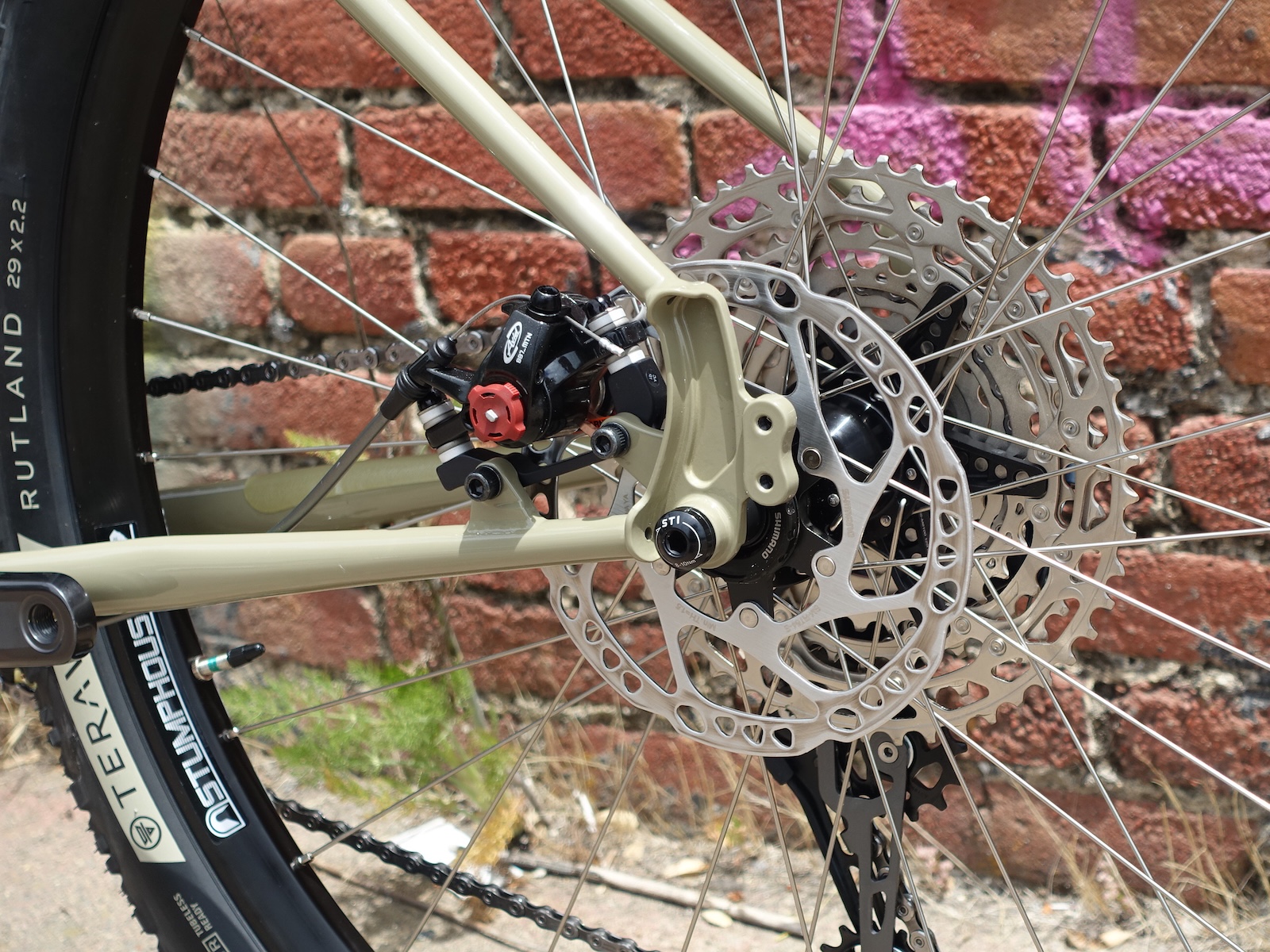

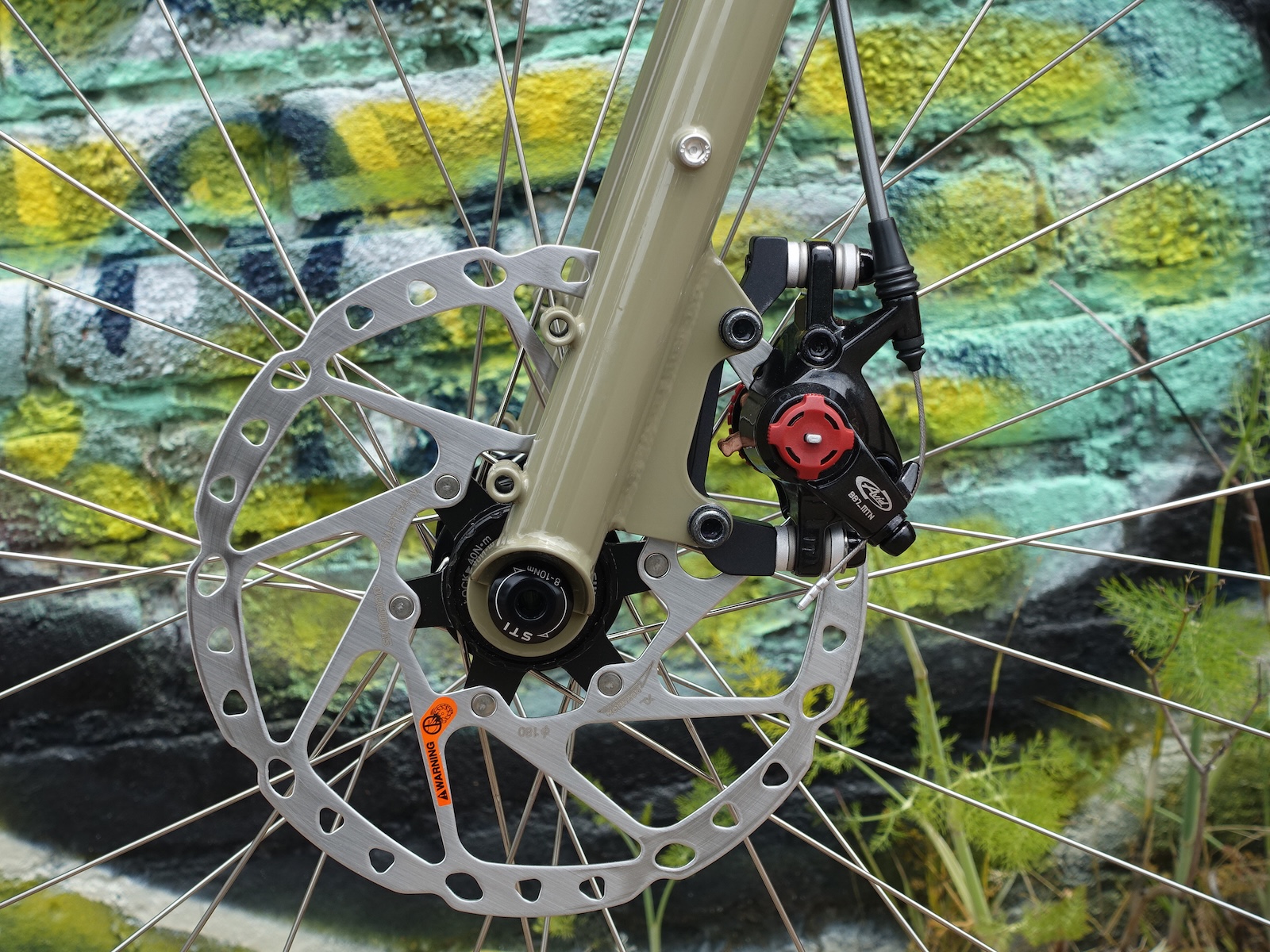

Brake Calipers Avid BB7 w/ compressionless housing
Brake Rotors Shimano Centerlock 180/160
Brake Caliper Adapters Shimano
Wheelset
Front Hub Shimano TC500 32h
Rear Hub Shimano TC600 Microspline 32h
Rims Boyd Stumphouse
Rim Strips Tubeless Tape
Spokes / Nipples DT Competition 2.0/1.8 w/ brass nipples, silver
Tires Teravail Rutland 29″ x 2.2″
Tubes Sealant, Tubeless Valves

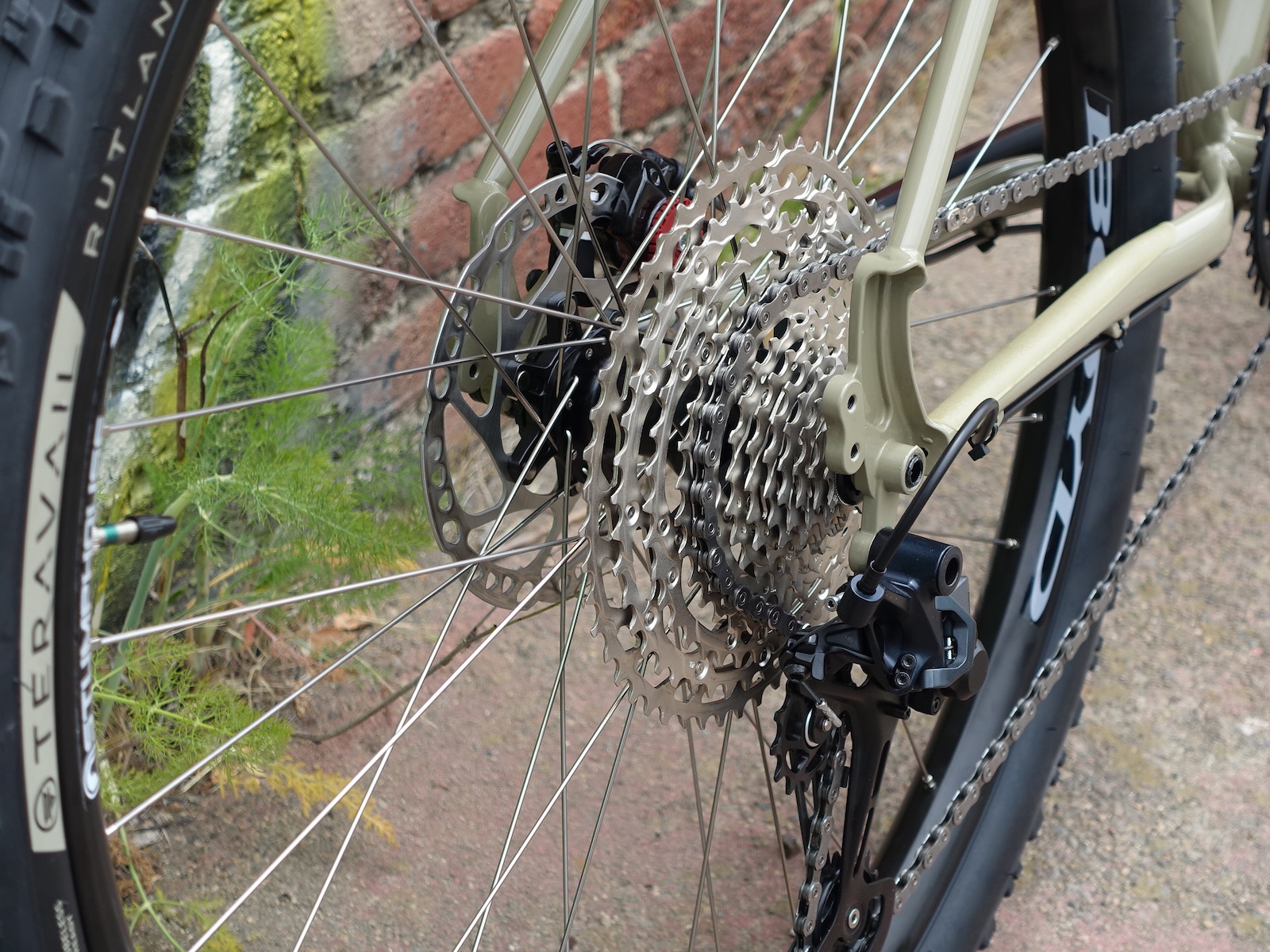

Cassette Shimano M6100 10-51
Chain Shimano M7100 12s
Seat WTB Volt
Seat Post MSW 30.9 rigid, or equivalent
Seat Clamp Included
Pedals Not Included

Specifications and price subject to change without notice.
By placing this order you agree to the requirements noted above for shipping.

Geometry | Sizing

La Cabra 16″ 17″ 18″ 20″ 22″
Seat Tube (center-top) 405 432 460 508 560
Head Angle 70° 70° 70.5° 70.5° 70.5°
Seat Angle 74° 73° 73° 72.5° 72.5°
Top Tube (effective) 545 560 580 600 620
Chain Stay 444 444 444 444 444
BB Drop 70 70 70 70 70
Head Tube Length 125 150 175 205 230
Fork Length 425 425 425 425 425
Fork Offset 55 55 50 50 50
Trail 72 72 74 74 74
Stack 581 604 632 660 684
Reach 376 378 385 390 403
Standover* 748 773 799 836 872
Front Center 624 635 641 656 677
Wheelbase 1059 1070 1075 1091 1112

*Based on 27.5″ x 2.6″ tire
BB height with 27.5″ x 2.6″ tire = 11.4″
BB height with 29″ x 2.3″ tire = 12″

Size / Fit Recommendations. For more sizing info check out the Sizing page.

Frame Size Minimum Seat Height Maximum Seat Height Rider Height Range
16” 62cm 69cm 5’0” – 5’5”
17” 64cm 71cm 5’4” – 5’8”
18” 68cm 77cm 5’7” – 5’11”
20” 75cm 82cm 5’10” – 6’2”
22” 78cm 87cm 6’1” +

Seat height is measured center of bb to top of seat, in-line with seat tube

Shipping

Shipping rates to CONUS (local pickup is available too!). The listed rate is without insurance. Insurance would add approximately $50 if requested.

  • Pacific time zone – $190
  • Mountain time zone – $205
  • Central time zone – $225
  • Eastern time zone – $240
