Monstercross Complete SRAM Rival 1x Deposit
Monstercross Complete SRAM Rival 1x Deposit - Image 2
Monstercross Complete SRAM Rival 1x Deposit - Image 3
Monstercross Complete SRAM Rival 1x Deposit - Image 4

Monstercross Complete SRAM Rival 1x Deposit

$2,000.00

  • $2000 deposit only for complete Monstercross Drop Bar SRAM Rival 1x bike
  • Complete specs noted below
  • Price for complete bike as listed is $3490
  • Sales tax and shipping will be calculated at time final payment is due and bike is ready to ship
  • Lead time to ship approximately 2 weeks
  • Due to parts availability, substitutions are possible if available. Contact me to discuss.

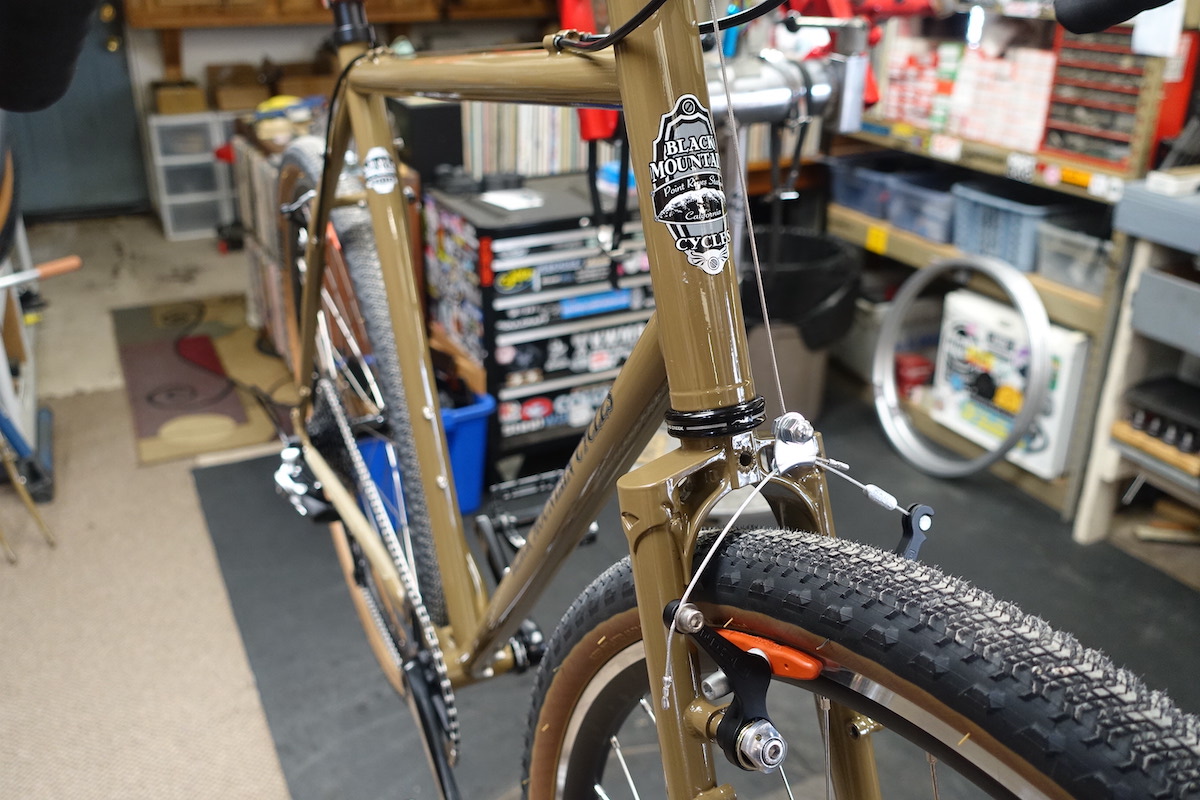

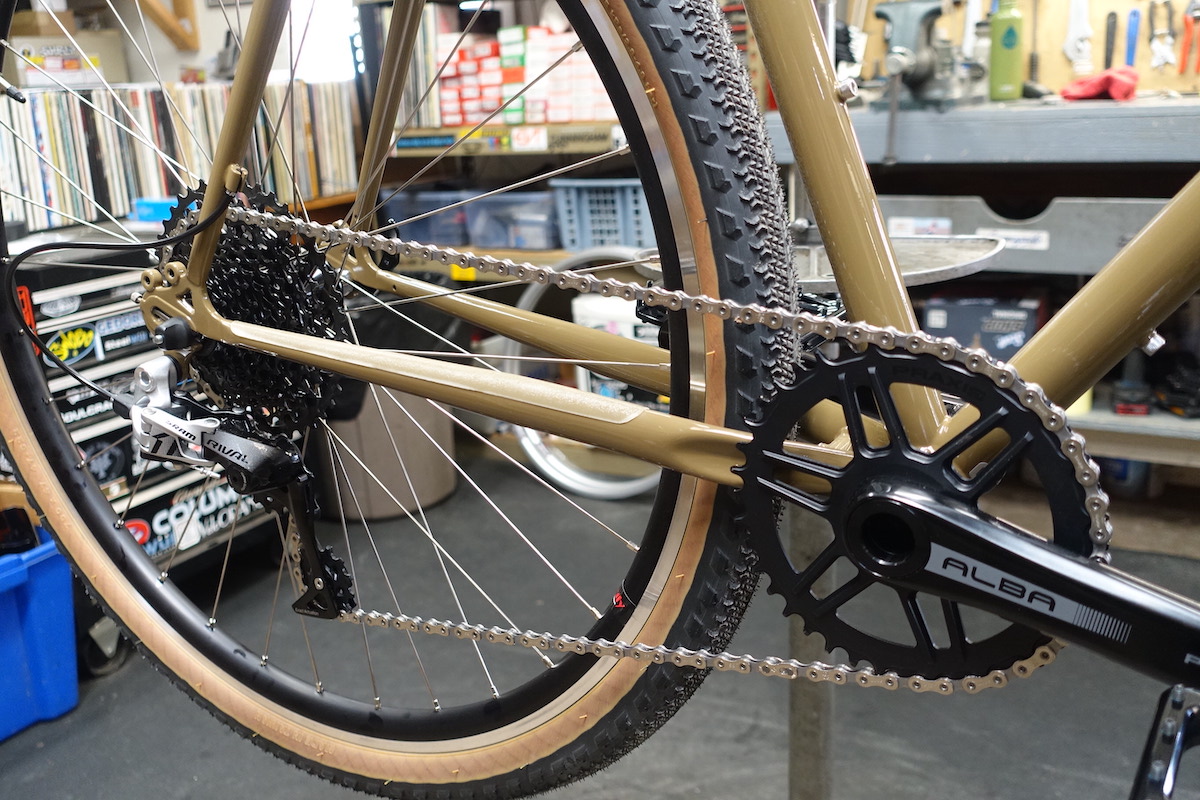

  • Photo of bike for reference only

Category: Tag:

Description

Item Description
Frame Black Mountain Cycles Cross frame set
Headset Cane Creek 40 Black
Spacers As Needed, Including Paul Funky Monkey Cable Hanger
Crankset Praxis Alba 40t
Bottom Bracket Praxis
Shifters SRAM Rival 1×11
Handlebar Salsa Cowbell
Stem MSW 31.8 Black
Grips / Tape Ergon AllRoad Bar Tape
Front Derailleur N/A
Rear Derailleur SRAM Rival 1x
Brake Levers Included w/ Shifters
Front Brake Paul Components Touring Canti
Rear Brake Paul Components Touring Canti
Wheelset
Front Hub Shimano 105 R7000 32h Black
Rear Hub Shimano 105 R7000 32h Black
Rims Velocity Quill
Rim Strips Tubeless Tape
Spokes / Nipples DT Competition 2.0/1.8 w/ brass nipples, silver
Hub Quick Release Shimano included
Tires Panaracer GravelKing 45, SK or SS
Tubes Sealant + Tubeless Valve
Cassette SRAM PG-1130 11-42
Chain SRAM PC-1130 11 Speed
Seat WTB Volt Cromoly Rail
Seat Post MSW 2-Bolt 27.2mm
Seat Clamp Included
Pedals Not Included
Cables & Casings Included

Specifications and price subject to change without notice.
By placing this order you agree to the requirements noted above for shipping.

Geometry | Sizing

Monstercross 46cm 50cm 53cm 56cm 59cm 62cm
Seat Tube (center-top) 460 500 530 560 590 620
Head Angle 70° 71° 71.5° 71.5° 72° 72°
Seat Angle 74.5° 74.5° 74° 73° 73° 72.5°
Top Tube (effective) 505 520 540 560 585 605
Chain Stay 428 432 432 432 432 432
BB Drop 72 76 76 75 74 74
Head Tube Length 90 95 125 160 185 205
Fork Length 385 400 400 400 400 400
Fork Offset 60 55 55 55 50 50
Trail 60 64 61 61 63 63
Stack 510 538 569 603 628 646
Reach 364 369 375 375 392 401
Standover 727 769 796 823 852 875
Front Center 591 591 603 614 629 644
Wheelbase 1009 1011 1023 1034 1050 1065

*46cm size is based on 650b x 48 tire. All other sizes based on 700c x 48 tire.
**Measured to the forward most position.  Approximately 18mm of adjustment to the rear.

Frame Size Minimum Seat Height Maximum Seat Height Rider Height Range
46cm* 61cm 68cm 4’9″ – 5’2″
50cm 66cm 73cm 5’3” – 5’6”
53cm 69cm 76cm 5’5” – 5’9”
56cm 72cm 79cm 5’8” – 5’11”
59cm 75cm 81cm 5’10” – 6’2”
62cm 78cm 85cm 6’1″ – 6’4″

Seat height is measured center of bb to top of seat, in-line with seat tube

Shipping

Shipping rates to CONUS (local pickup is available too!). The listed rate is without insurance. Insurance would add approximately $50 if requested.

  • Pacific time zone – $190
  • Mountain time zone – $205
  • Central time zone – $225
  • Eastern time zone – $240
