Mod Zero Shimano GRX RX717 Di2 1x12 - Deposit

Mod Zero Shimano GRX RX717 Di2 1×12 – Deposit

$2,000.00

  • $2000 deposit only for complete Mod Zero Shimano GRX RX717 Di2 bike
  • Complete specs noted below
  • Price for complete bike as listed is $4575
  • Sales tax and shipping will be calculated at time final payment is due and bike is ready to ship
  • Lead time to ship approximately 2 weeks
  • Due to parts availability, substitutions are possible if available. Contact me to discuss.

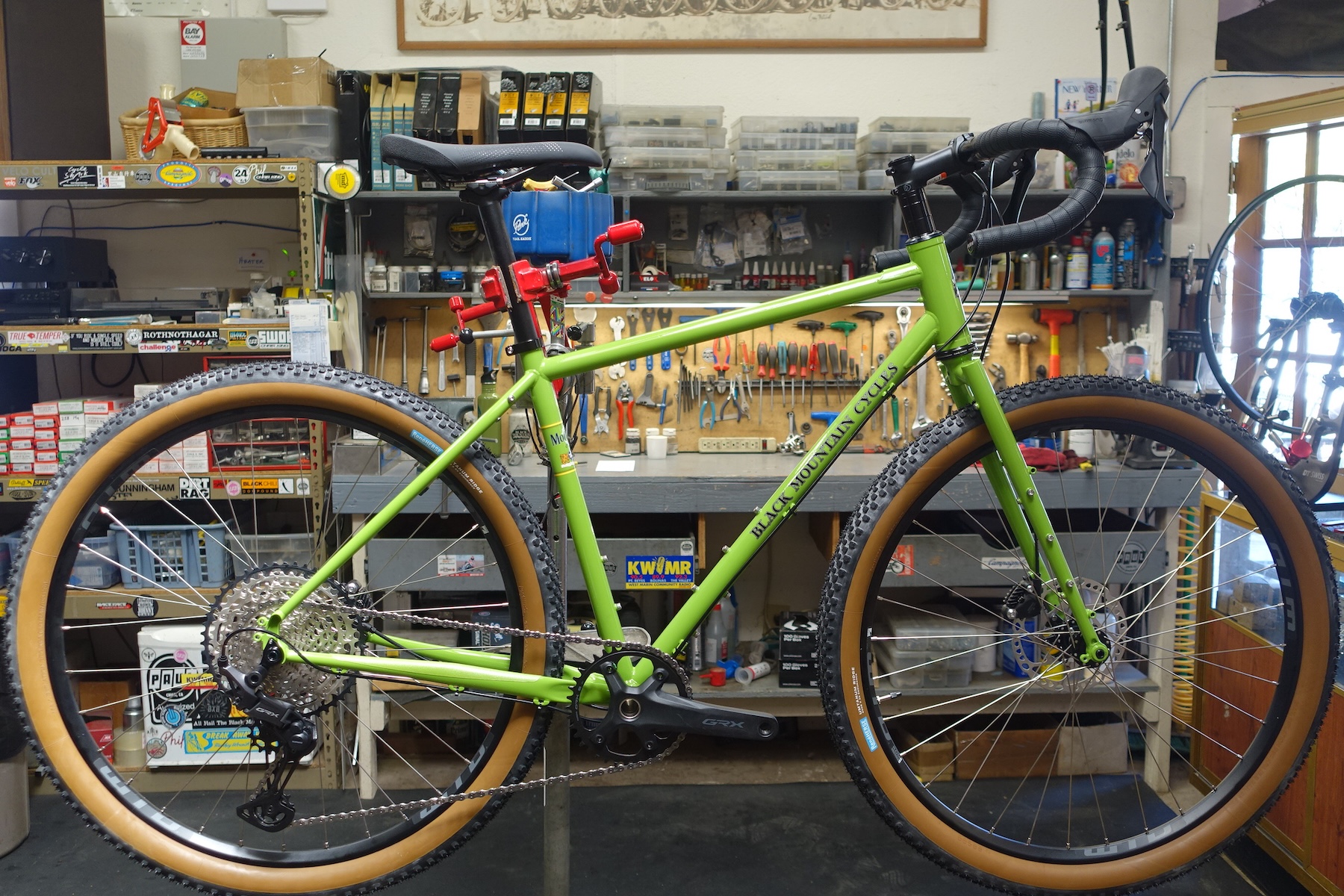

  • Photo of bike for reference only, dropper post and pedals shown not included
  • Check the drop down size/color for current availability

Category:

Description

Frame Black Mountain Cycles Mod Zero frame set
Headset Cane Creek 40 Black
Spacers As Needed
Crankset Shimano GRX FC-RX610 40t
Bottom Bracket Shimano R60
Shifters Shimano GRX ST-RX715 Di2 Wireless
Handlebar Salsa Cowbell DLX (transitioning to Teravail Radia 12)
Stem MSW 31.8
Grips / Tape Ergon BT All Road
Front Derailleur N/A
Rear Derailleur Shimano GRX RD-RX717 Di2 (includes battery + charger)
Brake Levers Include w/ shifters
Brake Calipers Include w/ shifters
Brake Rotors Shimano RT64 160mm Center-Lock
Brake Caliper Adapters Shimano
Wheelset
Front Hub DT Swiss 350
Rear Hub DT Swiss 350 MicroSpline
Rims Astral Outback 28h
Rim Strips Tubeless Tape
Spokes / Nipples DT Competition 2.0/1.8 w/ brass nipples, silver
Tires Panaracer GravelKing 45, SK or SS
Tubes Tubeless Valves + Sealant
Cassette Shimano M7100 10-45 or 10-51
Chain Shimano M7100 12s
Seat WTB Volt Cromoly
Seat Post MSW 2-Bolt 27.2mm
Seat Clamp Included
Pedals Not included

Specifications and price subject to change without notice.
By placing this order you agree to the requirements noted above for shipping.

Geometry | Sizing

Mod.Zero 44cm 47cm 50cm 53cm 56cm 59cm
Seat Tube (center-top) 440 470 500 530 560 590
Head Angle 71° 71.5° 71.5° 72° 72° 72°
Seat Angle 74° 73.5° 73° 73° 72.5° 72.5°
Top Tube (effective) 530 540 555 575 595 615
Chain Stay 438 438 438 438 438 438
BB Drop 72 72 72 70 70 70
Head Tube Length 120 140 160 180 200 220
Fork Length 410 410 410 410 410 410
Fork Offset 55 55 55 50 50 50
Trail 64.1 60.8 60.8 62.8 62.8 62.8
Stack 567 588 607 627 646 665
Reach 368 366 370 383 391 405
Standover 756 778 802 828 851 875
Front Center 600 601 611 621 635 655
Wheelbase 1028 1029 1039 1049 1063 1084

Size / Fit Recommendations. For more sizing info check out the Sizing page.

Frame Size Minimum Seat Height Maximum Seat Height Rider Height Range
44cm 63cm 69cm 5’0” – 5’5”
47cm 67cm 73cm 5’4” – 5’9”
50cm 72cm 77cm 5’7” – 5’11”
53cm 75cm 80cm 5’10” – 6’1”
56cm 78cm 83cm 6’0” – 6’3”
59cm 81cm 87cm 6’2” +

Seat height is measured center of bb to top of seat, in-line with seat tube

Shipping

Shipping rates to CONUS (local pickup is available too!). The listed rate is without insurance. Insurance would add approximately $50 if requested.

  • Pacific time zone – $190
  • Mountain time zone – $205
  • Central time zone – $225
  • Eastern time zone – $240
